Product Overview

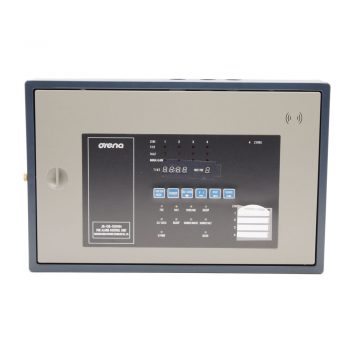

The JB-QB-ODH04 Conventional Fire Alarm Control Panel is a 24volt, 2 or 4 zone, Class B, Conventional Fire Alarm Control Panel. It is designed exclusively to meet the latest market requirements and microprocessor technology, with stand-by batteries (two sealed acid storage batteries) and reserved space for installation. It has functions of operation indication, fault indication, alarm indication and cable checking for short circuit or broken circuit. The highly cost-effective JB-QB-ODH04 can be used in low-sized applications.
Characteristics
- Style B (Class B) Initiating Device Circuits (IDCs) accept two-wire smoke detectors and any
normally-open contact devices
- One set of volt free changeover contacts operable on fire
- One set of volt free changeover contacts operable on fault
- Non-latching zones facility
- Class change input for remote control
- Zone and alarm disablement
- 28V 1.5A fused supply permanently available
- 28V 300mA fused supply available for fire alarm bells or sounders
- Passive repeater available
Specifications
AC mains power supply : AC220V±10% 50Hz, 2.0 amps
Battery : Sealed lead-acid batteries, maximum capacity:4Ah
System power supply output : Standby Current 65mA @ DC24V
Zone Capacity: can be connected with 30 fire detectors and infinite manual call points
Fire & Fault contact output: 1.0 amps DC24V or AC125V
Using environment Temperature : 0℃~50℃ Related Humidity: ≤95% (40±2℃)
Dimensions: 235×365×60mm (length × width × depth)
Product Overview

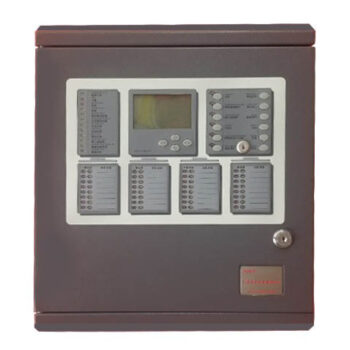

The ODH2‐32 is a 24volt, 2, 4, 8, 16 or 32 Zone, Class B, Conventional Fire Alarm Control Panel with battery charger. It is designed exclusively to meet EN54‐2&4 standard and the latest market requirements. It has functions of operation indication, fault indication, alarm indication and cable checking for short circuit or broken circuit. The powerful and highly cost‐effective ODH2-32 can be used in low‐sized applications.
Characteristics
- Comply with EN54-2&4 standard
- Class B Initiating Device Circuits (IDC5) accept two-wire smoke detectors and any normally-open contact devices
- Key-switch/Password user control access
- 8-line x 16-character large LCD display screen with multi-language menu options
- Configurable detection zones (Latching/Non-latching/Enable/Disable)
- Remote panel inputs (Class Change/Evacuate/Silence Alarms/System Reset)
- 4 alarm circuits as standard on 4 zone panel upwards
- Configurable panel outputs (Fire Routing/Fault routing/Fire Protection)
- Remote panel outputs (Evacuate/Buzzer Active/Disablement Active)
- Programmable relay output (linkage control)
- Delay mode configuration options (0-180 seconds)
- Up to 10 fully functional repeaters connected via 2 core RS485 data cable
- Extensive configuration and programming options to cater for individual requirements
TECHNICAL SPECIFICATIONS
| AC mains power supply |
187 – 242V AC/ 50Hz |
| Battery |
2 /4 / 8 Zone 24V2.2Ah; 16 / 32 Zone 24V7Ah |
| System power supply output |
DC28V 3.0 amps |
| Detection zone capacity |
Up to 30 fire detectors and infinite manual call points |
| Standby Current |
200mA |
| Alarm Sounder circuit |
400mA Max current drive per circuit – Fully monitored |
| Fire & Fault contact output |
1.0 amp DC24V or AC125V |
| Using environment |
Temperature: 0C’50C |
| Related Humidity |
95% (40 士 2C) |
| Dimensions |
370 x 320 x 130mm (length x width x depth) |
| Weight |
6.2KGS (without batteries)/11KGS (with 7Ah batteries) |
Product Overview
The OZH4800E control panel is an analog addressable fire alarm panel using the latest 32
bit microprocessor technology and containing 2, 4, 6 or 8 SLC loops with each loop
supporting 192 devices of any combination (sensors or modules). Communication between
devices is transferred through standard cable (shielded or twisted pair is not required). Each
panel includes a 5.0 amp power supply, 600 characters LCD display, 29 large easy-to-use
tactile touchpad for system operation, programming and maintenance, 12 state indicators
and a RS232/RS485 communication port. System operations include silencing alarms and
troubles, resetting system and manual starting/stopping field equipment. The system’s
non-volatile event history buffer stores 9999 events for viewing. The system supports a
variety of Orena devices: smoke and heat sensors, manual call points, contact input
(monitor) modules, relay output modules, dual input/output modules, and short circuit
isolator modules. In addition, interfaces to conventional detection systems can be
established by using a conventional zone-monitoring module. The basic system can be
expanded by adding OZF-LCD remote annunciator, OZH48ZL signalling line circuit expander,
and optional mini-printer (for printing system reports). The intelligent panel and detectors
know the difference between a fire and a dirty sensor. It lets you tailor sensor sensitivity and
gives you immediate, pinpoint accuracy for any condition. The powerful OZH4800E system
provides you with revolutionary value and performance in addressable sensing technology,
reduces nuisance alarms and makes service calls a rarity.
Characteristics
- Using advanced industry-standard protocol for fast and stable communication
- Up to 1536 addressable points, 192 sensors & modules per loop
- Uses standard wire, no shielded or twisted pair required on SLC loops
- Supports Class B (style 4) and Class A (style 6 or 7) SLC loops
- Automatic drift compensation & daily calibration
- Programmable sensitivity levels per device
- Large 15-line x 40-character LCD display (600 char.)
- Built-in help information screens
- Powerful & versatile Cause & Effect programming (fire protection-related device control)
- RS-232 /485 communication port
- Optional mini-printer
Specifications
Primary Power Supply: 120V or 220VAC 50/60Hz
Standby Batteries: DC24V 4AH sealed rechargeable batteries
Power Supply Output: 24VDC @ 5.0 Amps (4 Amps available for system power)
Display: 15 lines x 40 characters LCD (600 characters total)
SLC loops: 2, 4, 6 or 8 (class A, “style 6 or 7” or class B, “style 4”)
Devices per loop: 192 sensors & modules
Addresses per panel: 1536 max.
Communication Port: RS232/RS485
Operation Temperature: –10°C~+50°C Related Humidity: ≤95% (40±2°C)
Dimensions (D * W * H): 110×335×435mm Weight: 16Kg
SLC DEVICES & SYSTEM ACCESSORIES
OM622Addressable Dual Input Monitor Module
| MODEL |
DESCRIPTION |
| OT602 |
Analogue Addressable Photoelectric Smoke Detector |
| OT603 |
Analogue Addressable Heat Detector |
| ODZ6004 |
4 inch Addressable Detector Base |
| OA610 |
Addressable Manual Call Point |
| OX620 |
Addressable Hydrant Button (waterproof) |
| OS631 |
Addressable Horn & Strobe |
| OM611 |
Addressable Supervised Relay Module |
| OM621 |
Addressable Dual Relay Output Module |
| OM612 |
Addressable Input Monitor Module |
| OM622 |
Addressable Dual Input Monitor Module |
| OM613 |
Addressable Conventional Zone Module |
| OM515 |
Short Circuit Isolator Module |
| OMDZ51 |
Module Base |
| OZH48ZL |
4 Loops Expander Card (768 points) |
| OBM |
Hand Held Programmer (portable device addresser) |
| OZF-LCD |
LCD Remote Annunciator |
| OLK3908 |
LED Fire Indication Panel |
Product Overview
OT602 Smoke Detector is designed in transnormal thin style. With a unique optical sensing chamber designed to sense smoke particles produced by a wide range of combustion sources. The sensing chamber is sealed against back pressure air flow, dirt, and insects. This chamber is protected by a fine mesh screen which can be cleaned or replaced. Its hardware filter can verify the true fire and reduce false alarm.
Characteristics
- Transnormal thin design for thickness , just 45mm.
- Adopt SMT technology, firmly, high secure and antijamming.
- Special methods for damp-proof, antisepsis and mildew-proof.
- With inner mothproof net and shield cover
- Flame retardant thermoplastic
- Easy plug-in of the head to base
- SEMS screws for easy wiring
- 2-wire without polarity
- Comply with Standard: GB4715-2005
Specifications
Operating Voltage: DC20V~DC28V
Standby current: ≤70μ A Alarm current: ≤20mA (connect to DC24V and 1k resistor in series)
Dimensions: Diameter 100mm Height 51mm (with base) Weight: 142g (with base)
Using Environment: Temperature: –10°C~+50°C Related Humidity: ≤95% (40±2°C)
Configuration and Installation Guide
- The Model of OT602 base is ODZ6004. Model 86H50 wall mounting enclosure or other
enclosure with 40~85mm mounting hole space should be used.
- The side of detector bottom and the side of base has one convex edge each. There is one
slot on the base. When mounting, make the convex edge pointing to the slot in the base,
and then place the detector into the slot. Finally turn clockwise until the convex edge of
the unit is flush with the convex edge of base.
Wiring
1 and 2 terminals are connected to the corresponding signal input terminals (without
polarity) of fire alarm control panel or interface modules respectively. One EOL (End of Line)
resistor should be connected in series between 1 and 3 terminals of the detector at the end
of line. The specs of the resistor should refer to the requirement of control panel or
interface module.
Notice
- After installing, the detector has to be locked into the slots of base, and its convex edge
should be flush with the convex edge of base. Otherwise, it will be reinstalled.
- After installed onto the base, wire pipe on the ceiling should be sealed with sealing paste
or sealing glue to prevent accumulated water going into the unit.
- When connecting, the wire should be with cooled terminals or tinned, and can’t be
wound randomly.
